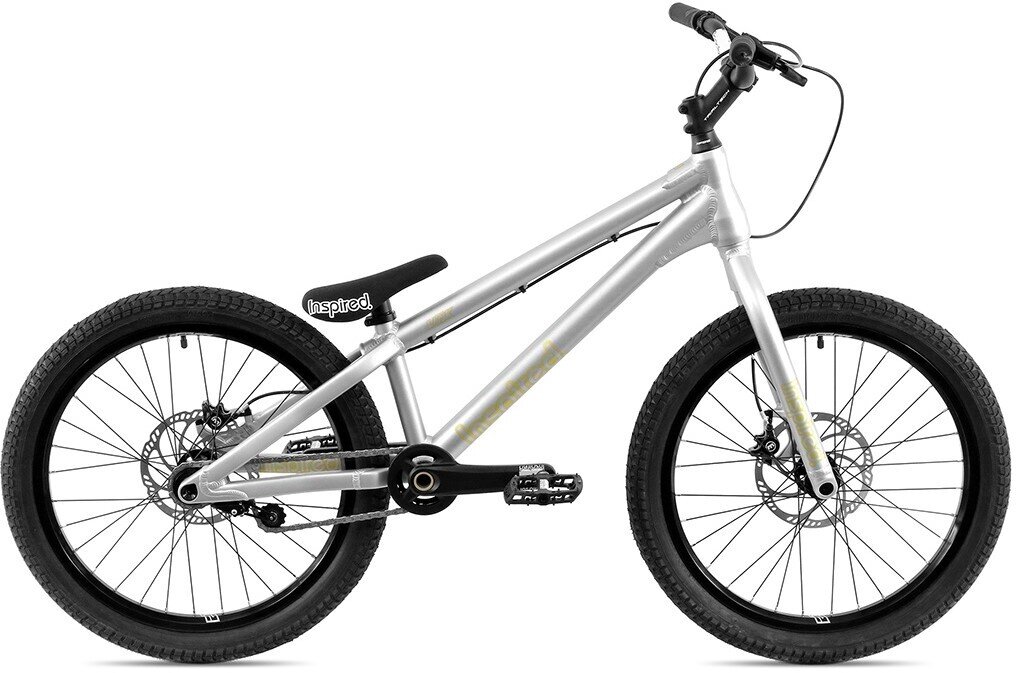

Inspired Link 22" Bike

Inspired Link 22" Bike
$1,999.00 - $2,299.00
Please select options

Details

- Sharing many of the features of the market-leading Fourplay bikes, the Link brings those technologies to shorter riders, or those who prefer the smaller 22" wheel size.
- Through testing and development with team rider Yuki Kishi, the geometry has been carefully chosen to make it ideally suited for progressive street trials riding.
- Unique geometry provides a platform that's agile enough to learn all the latest street trials moves, while offering stability for new riders.
- The custom hollow chainstay and bottom bracket yoke carried over from the Fourplay allows the Link to have shorter chainstays while maintaining the strength and stiffness required for big trials moves.
- At the rear of the frame, a 12mm bolt through axle (secured in a matching custom tapered insert) ensures that everything stays in place no matter what you throw at it.
- The frame and fork feature reinforced Post Mount disc brake mounts (fits 180mm rotors) thereby removing the need for additional brake caliper adaptors.
- The frame disc mount is a single, hollow component formed with the dropout to ensure perfect alignment and maximum strength.
- Exclusive-design seat and chainstay tubing improves both crank and heel clearance while the custom shaped dropouts and integrated tensioner mount maintain the clean and stylish look of the frame.
- The Link fork features the same tapered steerer tube and innovative crown construction found on the Fourplay fork.
- A 15mm through-axle keeps things firmly in place and adds plenty of stiffness while the countersunk design helps to keep things low profile and out of the way.
- Front brake hose steerer tube routing is made easy courtesy of the screw-in CNC-machined top cap (we no longer provide this service, as it complicates boxing and the hose can kink easily in shipping - so it is best to have your local shop do it once you receive the bike).
Built with a range of products from brands including Trialtech, KMC and FSA, no corners have been cut to get a durable and quality bike spec for a reasonable price.
- Steering is taken care of by an Inspired Pro riser bar with Trialtech Sport stem and FSA tapered headset.
- Custom Inspired Pro crankset with integrated bashring creates the platform for an excellent drivetrain along with a KMC chain, Inspired Pro composite platform pedals and custom single sided sprung chain tensioner.
- Braking duties are taken care of by Magura MT4 hydraulic disc brakes front and rear, giving the rider the necessary level of control they require.
- For the wheels, Inspired Link 22" rims are built onto Inspired super-smooth bolt through disc hubs front and rear with S&M Mainline 2.4" tires.
- Also available with Hope Tech Trial or Magura MT7 (with HC3 lever blade) disc brake upgrade.
- Available in Satin Silver only.

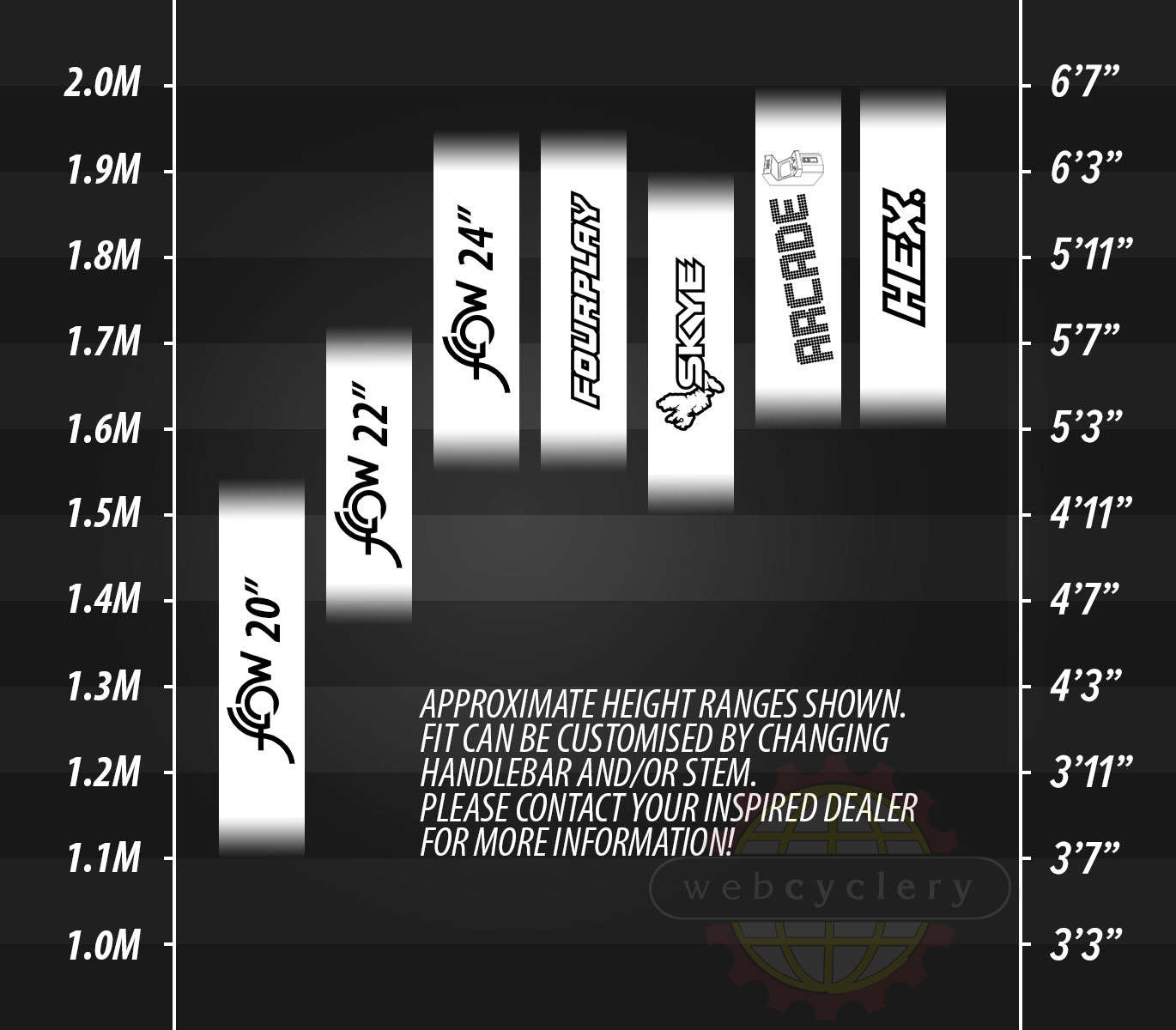

Suggested rider height: 1.35m/4ft 6in - 1.73m/5ft 8in

Geometry
- Wheelbase: 920mm
- Chainstays: 337mm
- BB Height: +15mm
- Head Angle: 74°
- Frame Spacing: 135mm

Please note: Complete bikes will not be supplied standard with the front brake hose routed through the fork as shown in the photos. If you would like us to perform this service, it can be added to your cart from the related products shown below.

Specs

Frame Inspired Link 22", 12mm bolt through axle, Satin Silver
Fork Inspired Link, Taper 1.5" steerer, 15mm bolt through axle, Satin Silver
Headset FSA, 1-1/8" Integrated Upper, 1.5" Integrated Lower, Satin Black
Stem Trialtech Forged, 90mm x 35°, Black
Handlebar Inspired Pro Riser, Satin Black
Grips Lizard Skins 'MacAskill' Rubber Grips, Black
Brakes Magura MT4 180mm Disc, Black or Hope Tech - Trial Zone 180mm Disc, Black (Optional Extra) or Magura MT7, HC3 Blade, 180mm Disc, Black (Optional Extra)
Pedals Inspired Pro Composite Sealed Bearing Platform, Black
Cranks Inspired Pro Integrated 24mm, 175mm, Satin Black
Bashring Inspired Pro Integrated, Satin Black
Bottom Bracket Inspired Pro 24mm, Black
Freewheel Trialtech Sport 16T, 72 engagement
Chain KMC Z1eHX-N
Chainring 22T Inspired Pro Integrated, Black
Tensioner Trialtech Sport Single Sided Sprung, Black
Tires S&M Mainline 22" x 2.4"
Rims Inspired Link, 22", Black
Front Hub Inspired Disc V2, 15mm bolt through axle, 32h, 100mm wide, Satin Black
Rear Hub Inspired Disc V2, 12mm bolt through axle, 32h, 135mm wide, Satin Black
Saddle Inspired Integrated Padded, Black
Seatpost Inspired Alloy

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Magura MT4 Brakes INS39297534R INS39297534R
Magura MT7 HC3 Brakes INS39859672R INS39859672R
