Details

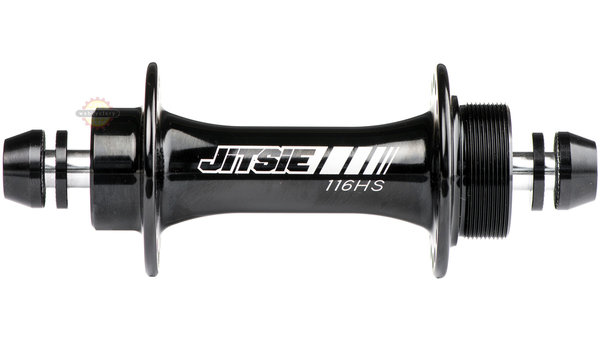

- Strong and affordable 116mm hub from Jitsie.
- 116mm spacing fits most 20" frames and some 24"/26" frames.
- Fully sealed cartridge bearings offer smooth and reliable running and protect against dirt and water.
- CNC machined aluminum hubshell tapers in the middle to shed unnecessary weight.
- Precision threaded (1.37" x 24 tpi) section ready to fit a freewheel or fixed sprocket.
- Serrated hub spacers and axle bolt washers help keep the wheel secure in the frame.
- Supplied with steel bolts.
- Spaced for use with snail cams (110mm + 3mm axle spacing for each snail cam). If you wish to use the hub in a 116mm frame without snail cams, you will need two additional 3mm spacers.
- Black anodized finish with Jitsie logos.
- 32h spoke drilling only.
Weight: 179g (including supplied bolts and washers)
Drive Side Flange Diameter: 45mm
Drive Side Center to Flange: 34mm
Non-Drive Side Flange Diameter: 45mm
Non-Drive Side Center to Flange: 37mm
Part Numbers
MPN | Store SKU |
---|---|
BI15ST-RRHUBHS116N | JIT30690306K |
