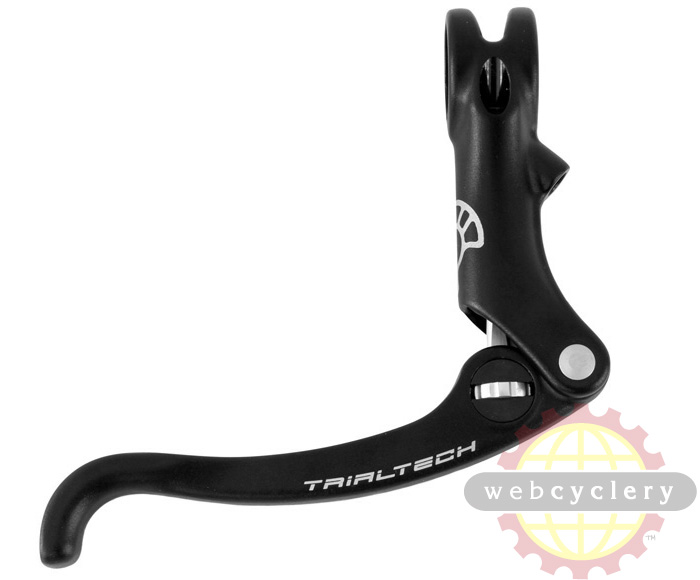

Trialtech Sport Rim Brake Lever

Trialtech Sport Rim Brake Lever
Please select options


- Quality, affordable rim brake lever from Trialtech.
- Forged main body and blade with precision CNC machined features.
- Ergonomic blade shape feels supportive and comfortable with a wide range of reach adjustment.
- 13mm piston and carefully selected leverage ratios allow a shorter and stiffer blade to be used without a loss in overall power.
- Replaceable pivot pin features locking grub-screw and unique hidden ‘backup’ securing system.
- Injection molded piston using tough, low moisture absorbing engineering plastic specifically designed for use with Trialtech brake fluid.
- Fitted with two UK made seals.
- Optimal bleed port position, air always rises to the bleed port exit, helping improve fluid change ease and quality.
- Low profile ‘leg-saver’ clamp using a custom forged 7075 bolt.
- Optimal main hose exit angle helps prevent tangled and damaged hoses.
- Custom extra-tough M6 cr-moly bleed blanking screw.
- Left or right side specific but can be flipped in urgent situations (the pivot pin should be turned around for added security).
- Compatible with all slave cylinders on the market.
- Designed for use with Trialtech brake fluid but is also compatible with mineral oil.
- Supplied with both a custom bleed hose and a Trialtech Barbed Fitting.
- Anodized black with stylish and subtle 'Sport' laser logos.

Part Numbers

Option MPN Store SKU
Left TRI34916372K TRI34916372K
Right TRI34998363K TRI34998363K
