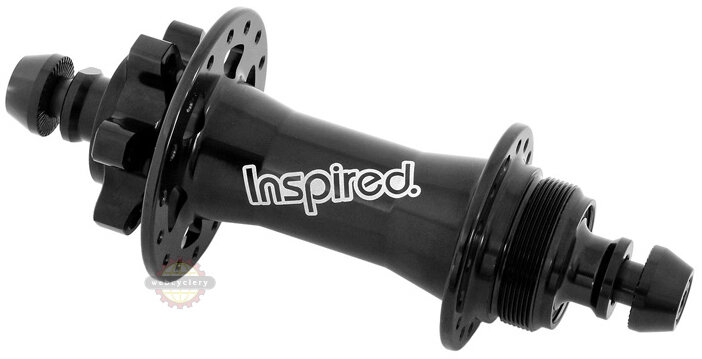

Inspired Pro Rear Disc Hub

Inspired Pro Rear Disc Hub
  • Axle: 10mm Bolt-On
  • Axle: 10mm Bolt-On
  • Axle: 12mm Thru-Axle
  • Axle: 12mm Thru-Axle
Axle: Select axle
Please select options Unavailable


- Top quality sealed bearing rear disc hub, as found on Inspired Pro spec bikes.
- CNC-machined hub shell features more material in high stress areas to improve durability.
- Machined disc side flange reduces weight without compromising strength.
- Threaded section uses a conventional 1.37" x 24tpi, suitable for use with 16t (and larger) screw-on freewheels.
- ISO disc mount is compatible with all 6-bolt disc rotors.
- Fully sealed cartridge bearings provide silky smooth performance in all conditions.
- Available with either 10mm bolt-in axle or 12mm through axle options, both with 135mm spacing.
- 10mm bolt-in version uses a hollow aluminium axle, with M6 steel axle bolts. Compatible with all Flow and Fourplay/Hex (2019 and earlier) frames.
- 12mm version is compatible with Fourplay (2020 onwards) and Hex (2020 onwards) frames, along with all Skye frames.
- Available in anodized black with laser etched Inspired logos.
- 32h drilling only.

Part Numbers

Option MPN Store SKU
10mm Bolt-On INS32754414K INS32754414K
12mm Thru-Axle INS4563492K INS4563492K
